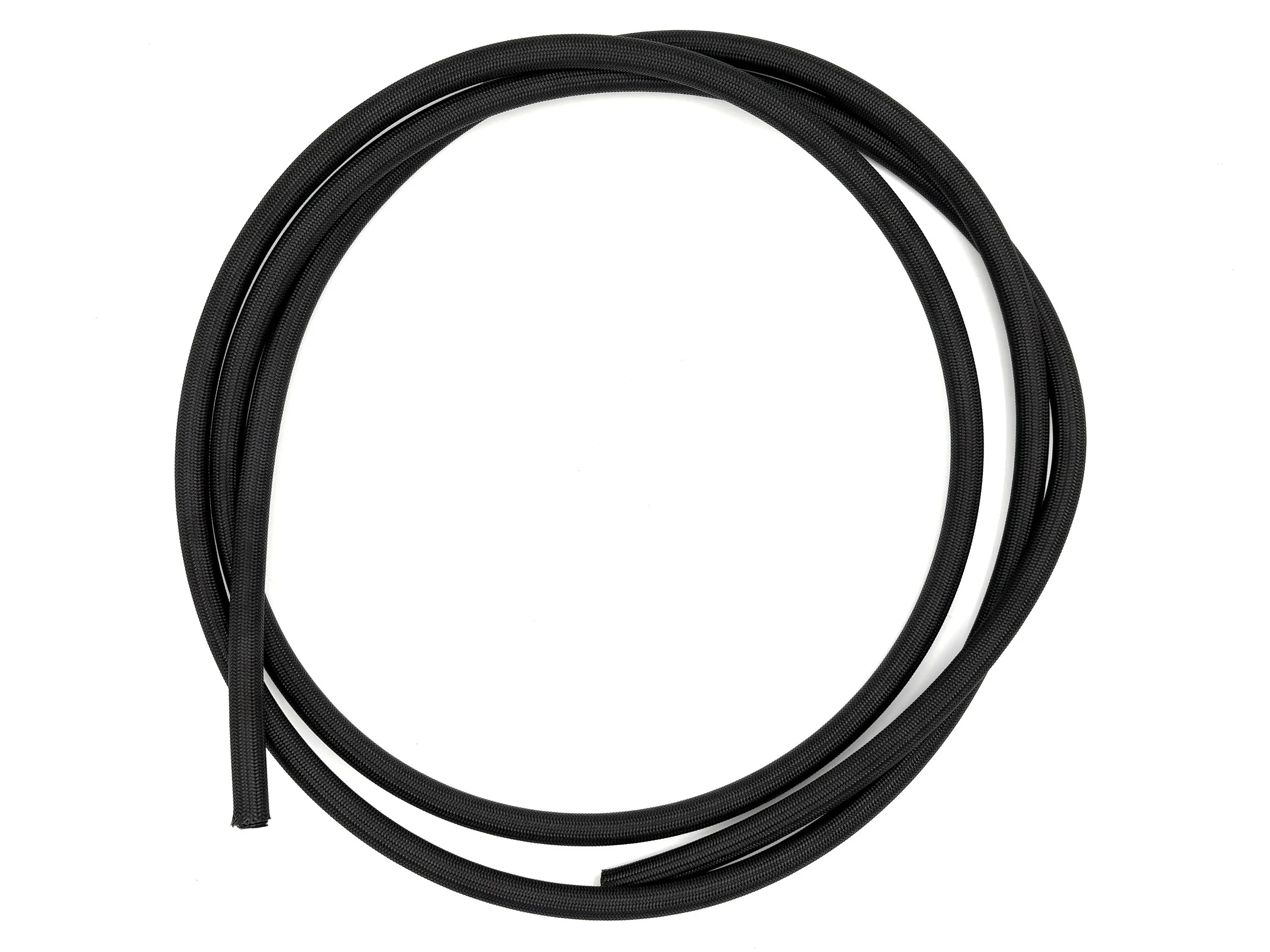

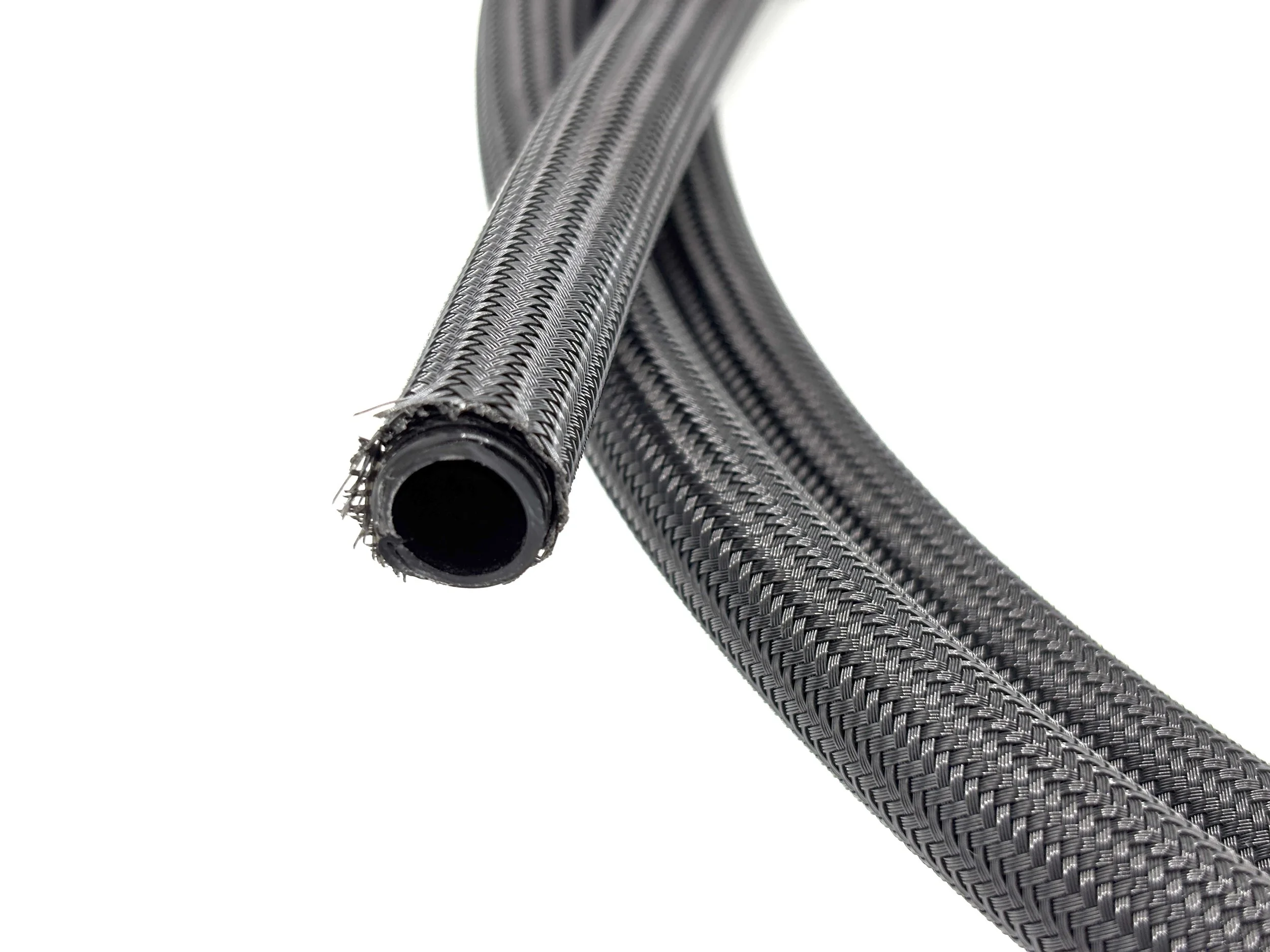

XRP ProPlus Xtreme monofilament PTFE hose. Offered in -10AN, -12AN, -12AN Plus, -16AN, -16AN Plus, -20AN. Hose is rated for a maximum continuous working temperature of 392ºF (200ºC). The Plus sizes allow for a larger I.D. hose between the common AN sizes. Compatible with all automotive fluids and fuels. The hose features a smooth inside with a convoluted outside wound with stainless steel wire for added support, wrapped in a monofilament covering.
-10AN Plus measures:.536” ID / .690” OD -16AN measures:.875” ID / 1.080” OD
Max operating pressure 250PSI. Max operating pressure 250PSI.
Use with -10AN Race Reusable, Use with -16AN Race Reusable or
-10AN Race Crimp, or -8AN HS-79 -16AN Race Crimp hose ends.
hose ends.
-12AN measures:.658” ID / .843” OD -16AN Plus measures:1.040” ID / 1.250” OD
Max operating pressure 250PSI. Max operating pressure 250PSI.
Use with -12AN Race Reusable, Use with -16AN HS-79 hose ends.
-12AN Race Crimp, or -10AN HS-79
hose ends.
-12AN Plus measures:.780” ID / .953” OD -20AN measures:1.280” ID / 1.555” OD
Max operating pressure 250PSI. Max operating pressure 250PSI.
Use with -12 HS-79 hose ends. Use with -20 HS-79 hose ends.
For more product specifications go to XRP Product Catalog.
XRP 334010XM, 334012XM, 334013XM, 334016XM, 334017XM, 334020XM.
If you would like the hose in smaller sections please note at check out.
