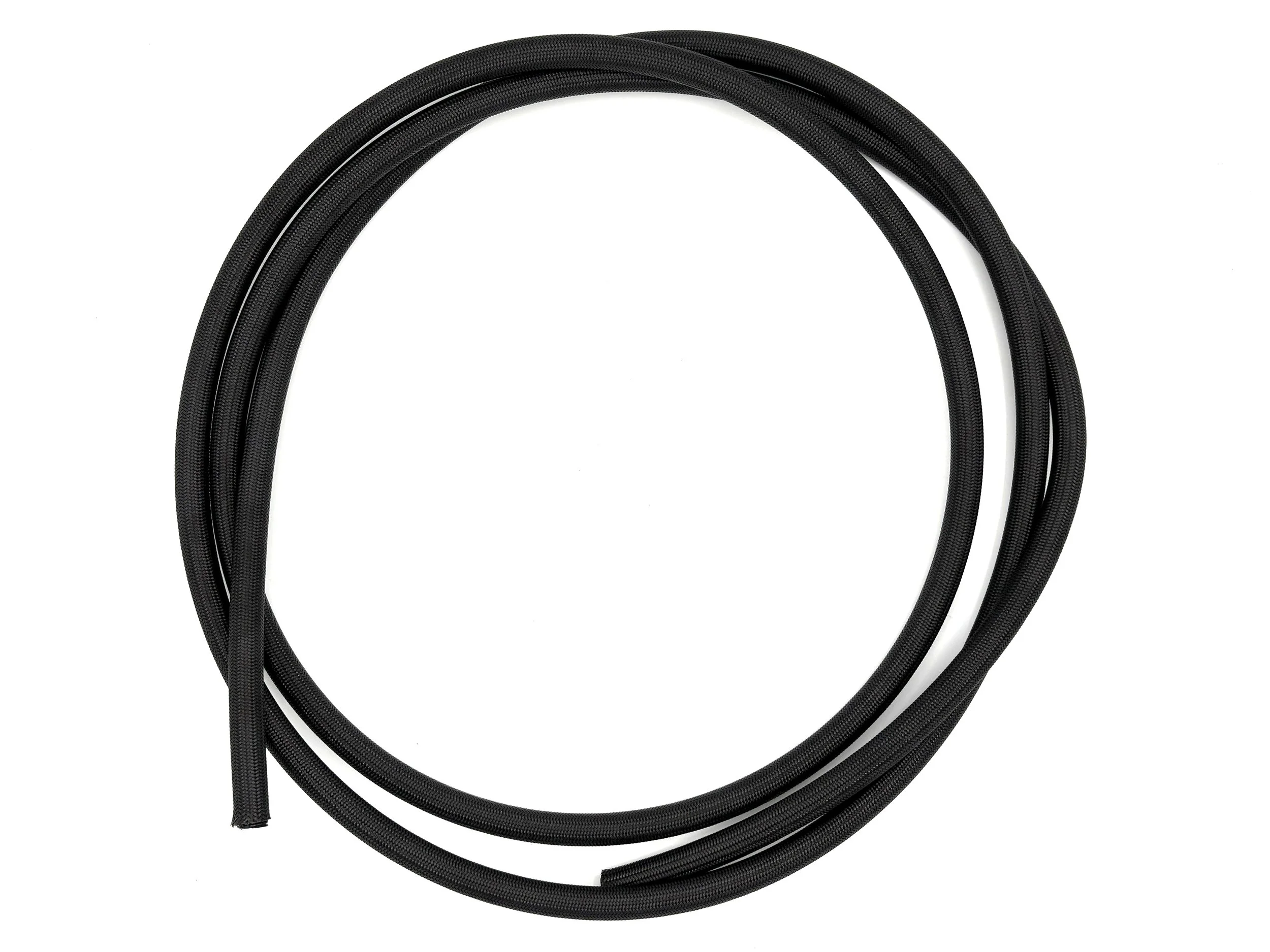

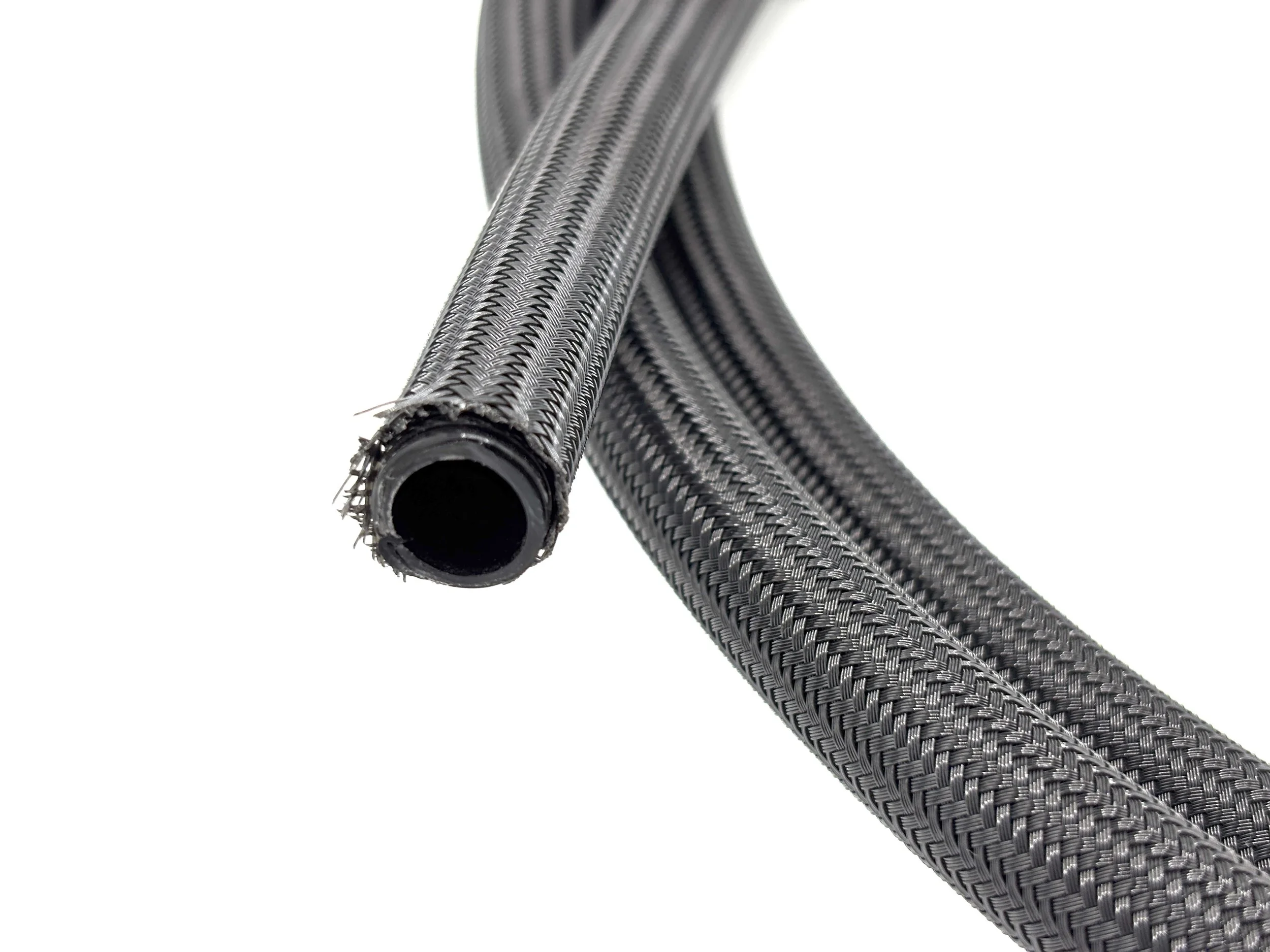

XRP ProPlus monofilament PTFE hose. Offered in -4AN Plus, -6AN, -6AN Plus, -8AN, -10AN, -12AN, -12AN Plus, -16AN, -16AN Plus. Maximum operating pressure rating on all sizes is 250 PSI. Hose is rated for a maximum continuous working temperature of 356ºF (180ºC). The Plus sizes allow for a larger I.D. hose between the common AN sizes. Compatible with all automotive fluids and fuels. The hose features a smooth inside with a convoluted outside wrapped in a monofilament covering.
-4AN Plus measures:.270” ID / .378” OD -12AN measures:.658” ID / .843” OD
Use with -4AN HS-79 hose ends. Use with -12AN Race Reusable,
-12AN Race Crimp, or -10AN HS-79 hose ends.
-6AN measures:.312” ID / .420” OD -12AN Plus measures:.780” ID / .953” OD
Use with -6AN Race Crimp hose ends. Use with -12AN HS-79 hose ends.
-6AN Plus measures:.394” ID / .534” OD -16AN measures:.875” ID / 1.080” OD
Use with -6AN Race Reusable, Use with -16AN Race Reusable or
-6AN Race Crimp, or -6AN HS-79 hose ends. -16AN Race Crimp.
-8AN measures:.465” ID / .607” OD -16AN Plus measures:1.040” ID / 1.250” OD
Use with -8AN Race Reusable or Use with -16AN HS-79 hose ends.
-8AN Race Crimp hose ends.
-10AN measures:.536” ID / .690” OD
Use with -10AN Race Reusable,
-10AN Race Crimp, or -8AN HS-79 hose ends.
For more product specifications go to XRP Product Catalog.
XRP 333004XM, 333006XM, 333007XM, 333008XM, 333010XM, 333012XM, 333013XM, 333016XM, 333017XM.
If you would like the hose in smaller sections please note at check out.
