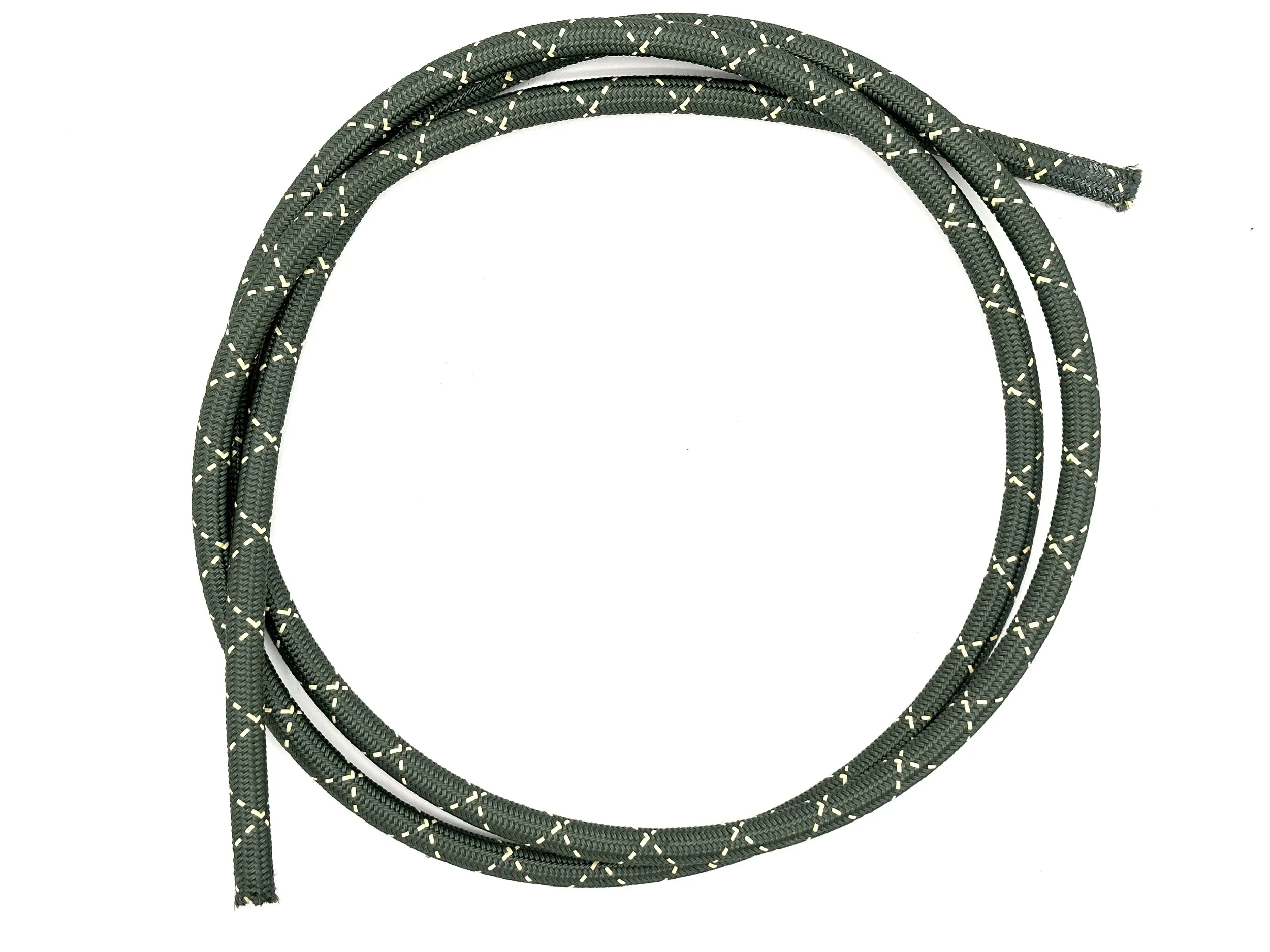

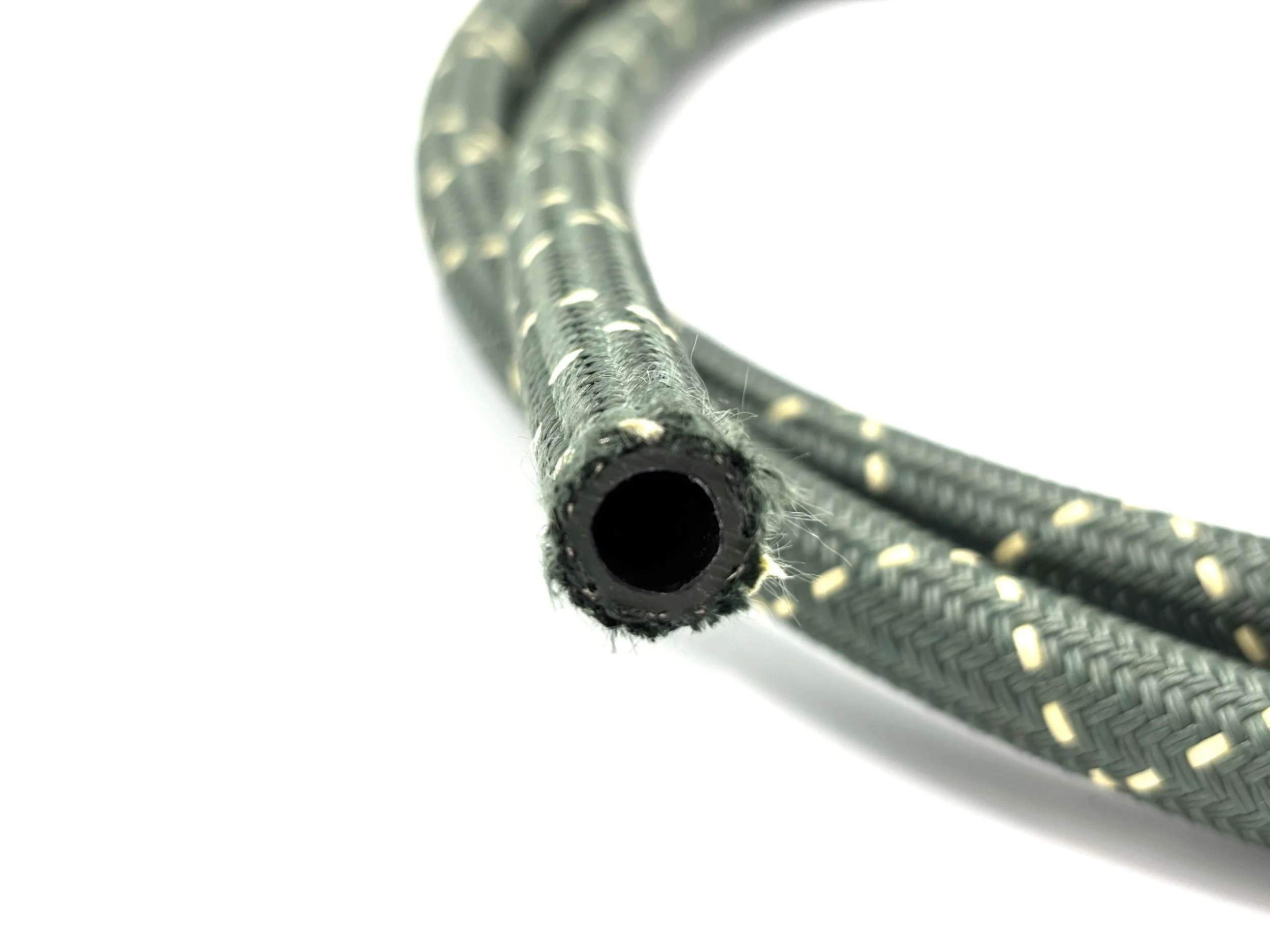

XRP HS-79 PTFE hose. Offered in -4AN, -6AN, -8AN, -10AN, -12AN, -16AN, -20AN. Hose is rated for a maximum continuous working temperature of 400ºF (204ºC). Compatible with all engine fluids, gasoline, alcohol and nitromethane. The hose features a PTFE inner liner, silicone outer liner, stainless steel braid, wrapped in an aramid covering. Not intended for hydraulic impulse or submersion applications. NHRA authorized.
-4AN measures:.250” ID / .400” OD -12AN measures:.750” ID / .950” OD
Max operating pressure 600PSI. Max operating pressure 400PSI.
Use with -4AN HS-79 hose ends. Use with -12AN HS-79 hose ends.
-6AN measures:.375” ID / .550” OD -16AN measures:1.000” ID / 1.200” OD
Max operating pressure 600PSI. Max operating pressure 200PSI.
Use with -6AN HS-79 hose ends. Use with -16AN HS-79 hose ends.
-8AN measures:.500” ID / .680” OD -20AN measures:1.250” ID / 1.450” OD
Max operating pressure 600PSI. Max operating pressure 100PSI.
Use with -8AN HS-79 hose ends. Use with -20AN HS-79 hose ends.
-10AN measures:.625” ID / .810” OD
Max operating pressure 400PSI.
Use with -10AN HS-79 hose ends.
For more product specifications go to XRP Product Catalog.
XRP 322004, 322006, 333008, 333010, 322012, 322016, 322020.
If you would like the hose in smaller sections please note at check out.
